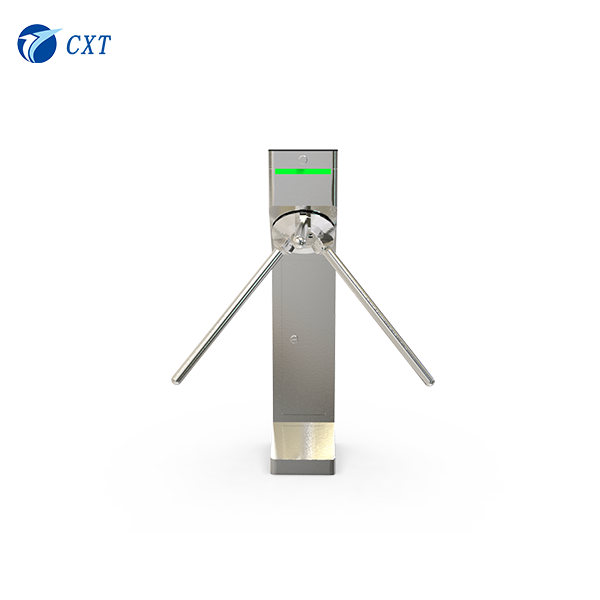

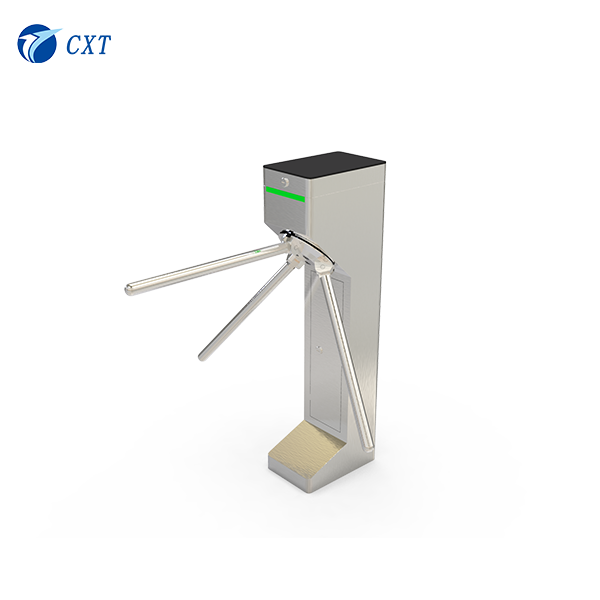

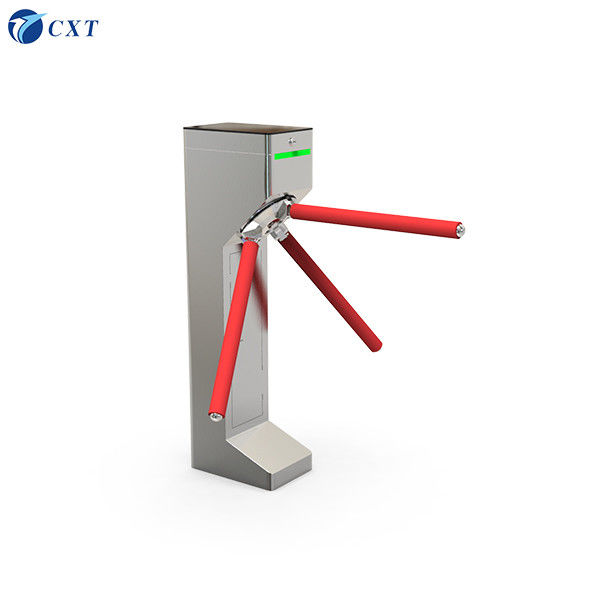

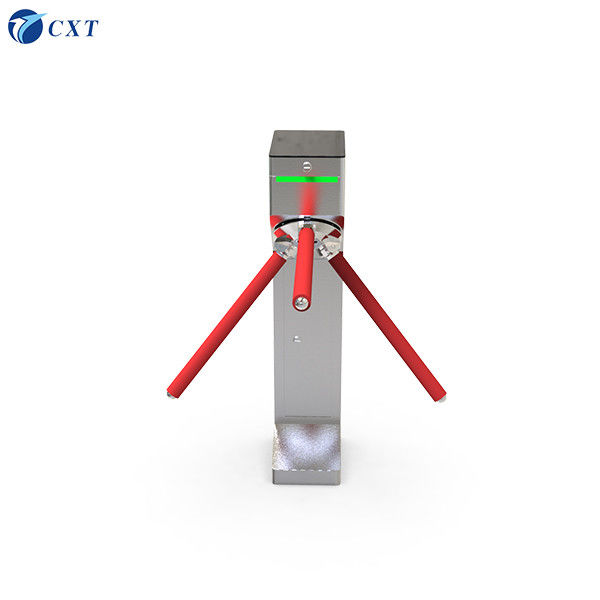

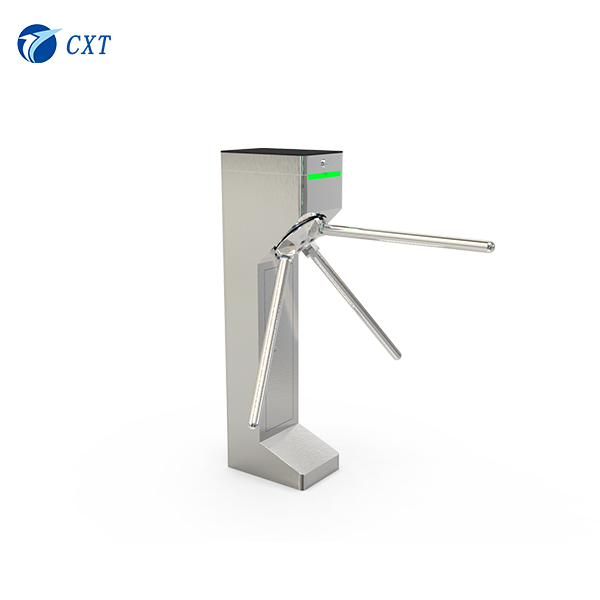

Semi-automatic vertical tripod turnstile (solenoid valve) CXT-S121
RFID Electronic Tripod Turnstile Gate Entrance Access Control
Vertical Brushless Motor Ticketing Tripod Turnstile CXT-SW121
Model:
CXT-SW121
Specifications:
1100×515×980mm
Pole length:
510mm
Process:
Produced by bending, cutting, welding, polishing, grinding
Material:
National standard 304 stainless steel (201 stainless steel, iron paint can be customized)
Product Overview
The vertical mechanical three-roller turnstile is constructed with national standard 304 stainless steel frame structure (customizable to 201 stainless steel or iron paint). The entire product appearance is stamped with stainless steel plates, making it rust-proof, sturdy and durable. The equipment is easy to use and maintenance-free.
Key Specifications
Product name:
Vertical mechanical three-roller turnstile
Model:
CXT-SW125
Dimensions:
Width 330×Length 420×Height 980 (mm)
Weight:
Approximately 45Kg
Gate rod length:
510 (mm)
Gate rod steering:
One-way, two-way (optional)
Working environment:
Indoor, outdoor (preferably with canopy)
Applications
This intelligent channel gate vertical three-roller turnstile is widely used in airports, subways, stations, libraries, office buildings, theaters, factories, enterprises, exhibition centers, stadiums, tourist attractions and other public places for access control, attendance, and electronic ticket management systems.
Technical Comparison
| No | Name | Common series on the market | Pentium series |
|---|---|---|---|
| 1 | Rotation mode | push | electric |
| 2 | Positioning principle | optical coupling fixed point | 1/500 decoding |
| 3 | Positioning mode positioning arm | horizontal position | not locked |
| 13 | Door rod thickness | ￠32 | ￠38 |
| 16 | Fire input | yes | yes |
| 17 | Feedback signal output | yes | yes |
Product Features
This tripod turnstile integrates mechanism, electric and micro-controller with various identification technologies, compatible with IC, ID, barcode, and fingerprint readers for intelligent control and management of flow control. It provides durable, anti-rust construction with smooth operation and low noise. The arm drops automatically in emergency conditions.
Ideal for bus stations, ports, subways, factories, mansions, residential areas, hotels, companies and any location requiring smart flow control.
