Fully automatic precision brushless tripod turnstile CXT-SW120YX
Stable Tripod Turnstile Gate with Alarm Prompt Functions

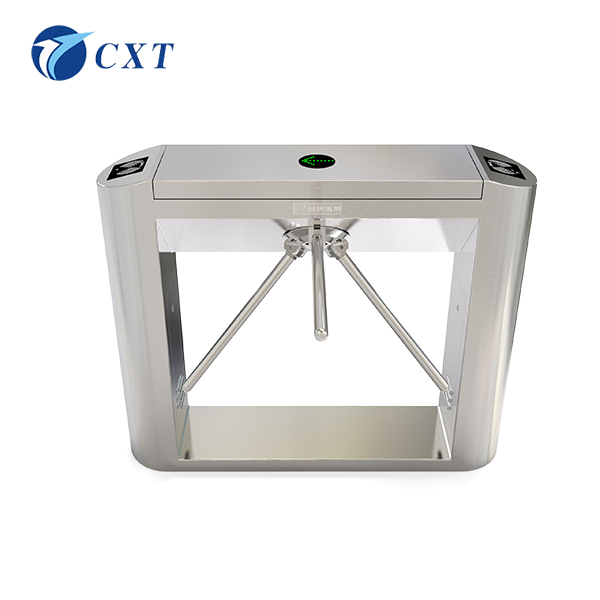

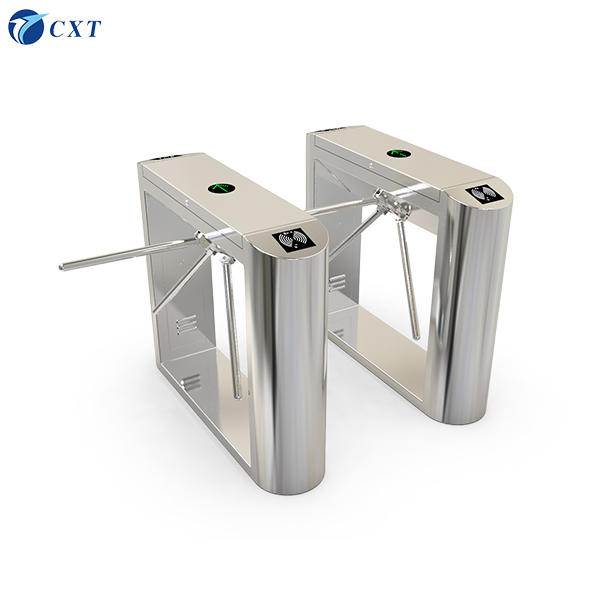

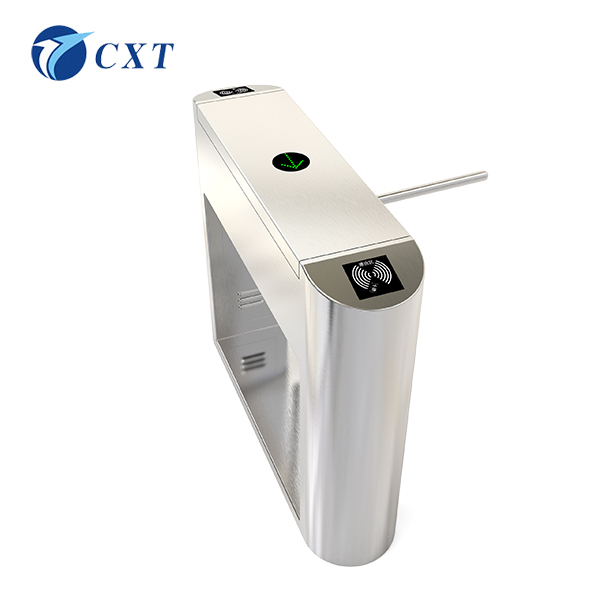

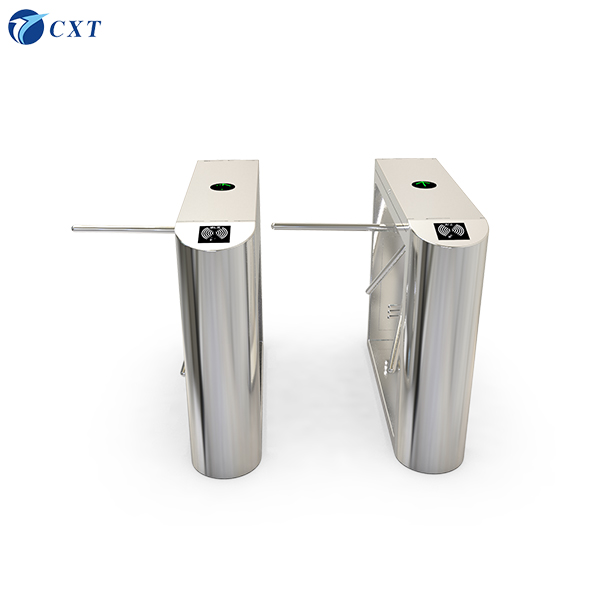

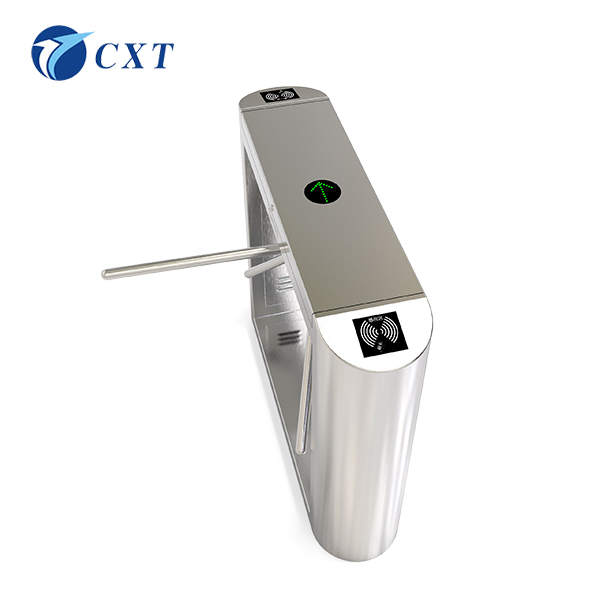

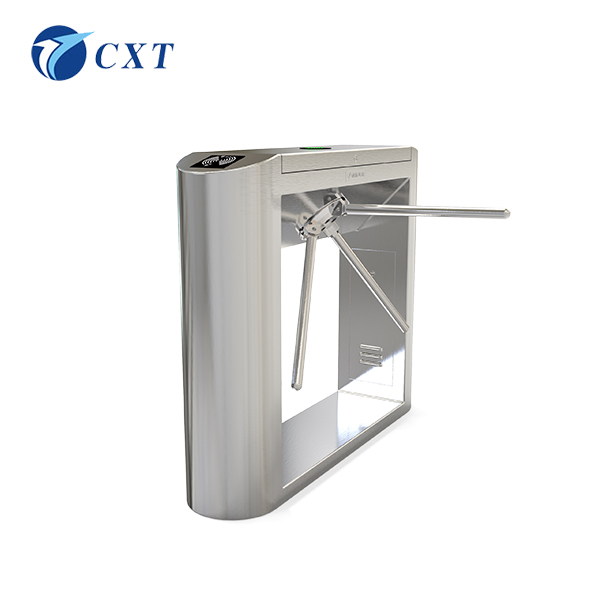

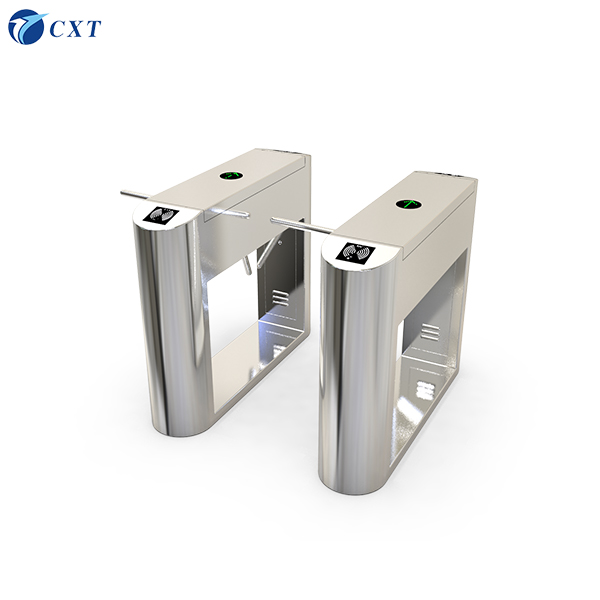

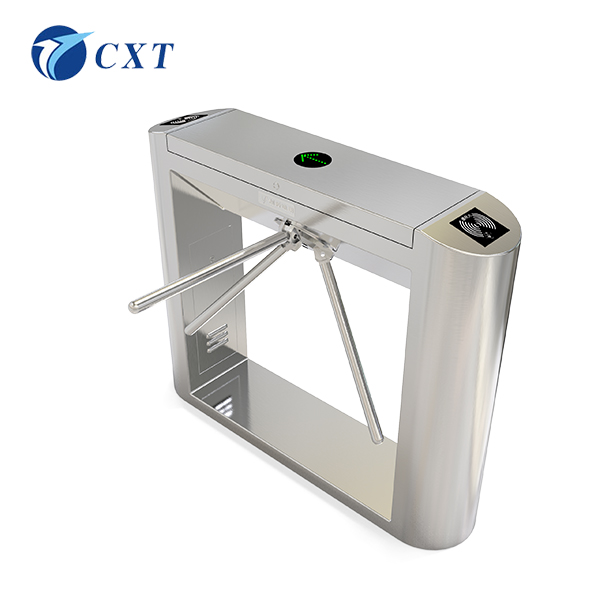

CXT-SW128YX Brushless Motor Intelligent Tripod Turnstile
| Model | CXT-SW128YX |
|---|---|

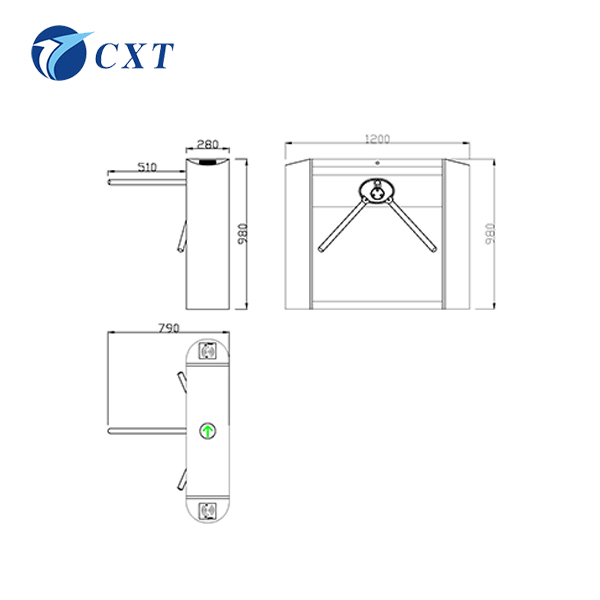

| Specifications | 1200*280*980 |
| Rod Length | 510mm |
| Process | Produced by bending, cutting, welding, polishing, and grinding |
| Material | National standard 304 stainless steel (201 stainless steel, iron paint can be customized) |
Smart Inclined Three-Roller Turnstile Features
- Fault self-checking and alarm prompt functions for easy maintenance
- Compatible with any control signal, button, or remote control for single-way and two-way passage control
- Configurable single-way and two-way free passage settings
- Automatic reset function with adjustable delay timing
- High-brightness traffic light status indication for passage guidance
- Anti-tailing function with automatic lock and alarm for unauthorized following
- Fire alarm signal integration for uninterrupted power-off and normal gate opening
- Memory function for accurate signal processing and improved passage speed
- Alarm prompt for illegal passage or gate rushing
- Anti-reversal function with automatic lock and alarm
- Anti-buffer function for injury prevention during unauthorized passage
- Unattended operation with automatic gate bar positioning during power cycles
- Dynamic prompt with gentle rotation for user-friendly operation
Expansion Capabilities
- Remote control and management through management computer
- Counting function for real-time people counting
- Personalized voice prompt function
Technical Comparison
| No | Name | Common Series | Pentium Series |
|---|---|---|---|
| 1 | Rotation Mode | Push | Electric |
| 2 | Positioning Principle | Optical Coupling Fixed Point | 1/500 Decoding |
| 3 | Positioning Mode | Horizontal Position | Not Locked |
| 4 | Transmission Mode | Solenoid Valve | Motor |
| 5 | Lifting Rod Mode | Manual | Automatic |
| 6 | Buffer | No | Yes |
| 7 | Anti-Reverse | No | Yes |
| 8 | Noise | High | No |
| 9 | Mechanical Wear | High | No |
| 10 | Illegal Alarm | No | Yes |
| 11 | Passage Prompt | No | Yes |
| 12 | Service Life | 1-3 Years | 5-10 Years |
| 13 | Door Rod Thickness | ￠32 | ￠38 |
| 14 | Power Off Drop | Yes | Yes |
| 15 | Memory | Yes | Yes |
| 16 | Fire Input | Yes | Yes |
| 17 | Feedback Signal Output | Yes | Yes |
Frequently Asked Questions
Will you install the channel lock for the first time?
Channel brake installation is very simple. Just fix the product properly, connect the main machine to 110V/220V power supply, and it can be used normally. If you need to connect to the internet, simply use a network cable to connect to the main computer. We provide one-on-one phone technical guidance services.
Can machines be used outside?
Yes, it can be used outside. All our machines have waterproof function.
What is the warranty for the machine?
(1) We guarantee all goods quality assurance for two years.
(2) Within the two-year warranty period, if the machine has problems, we can provide accessories (you pay the freight cost).
(2) Within the two-year warranty period, if the machine has problems, we can provide accessories (you pay the freight cost).
When will you make the delivery?
Regular products: 3-5 days. Irregular products: communication when you place the order.
