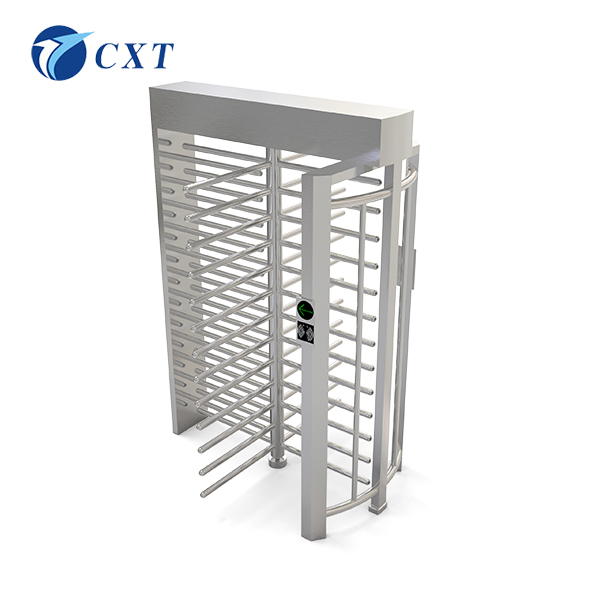

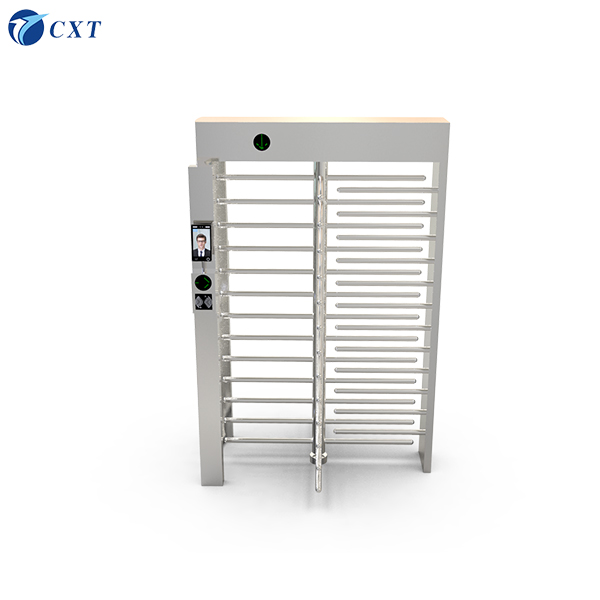

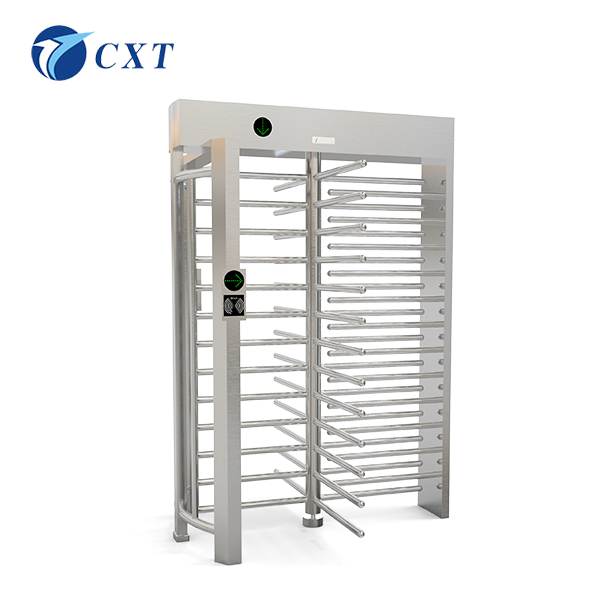

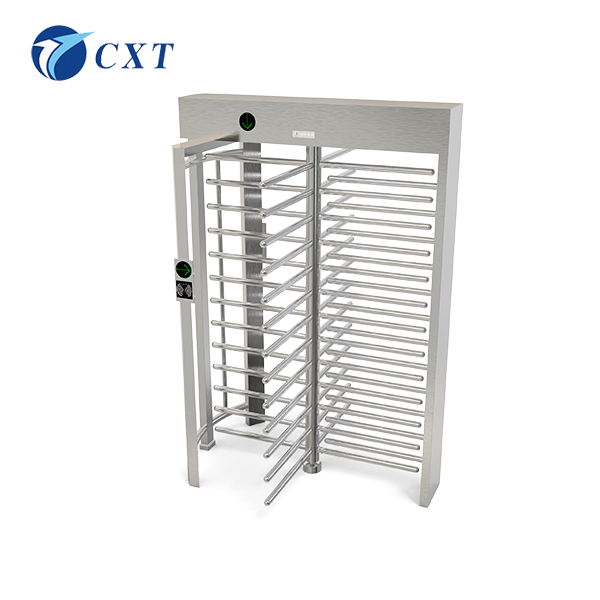

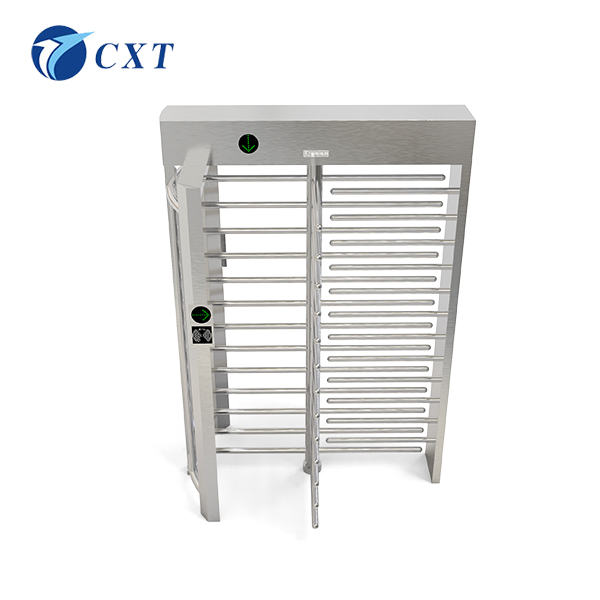

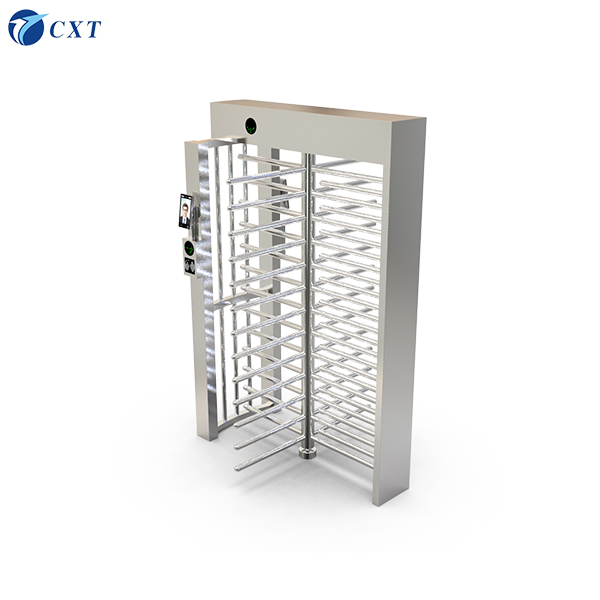

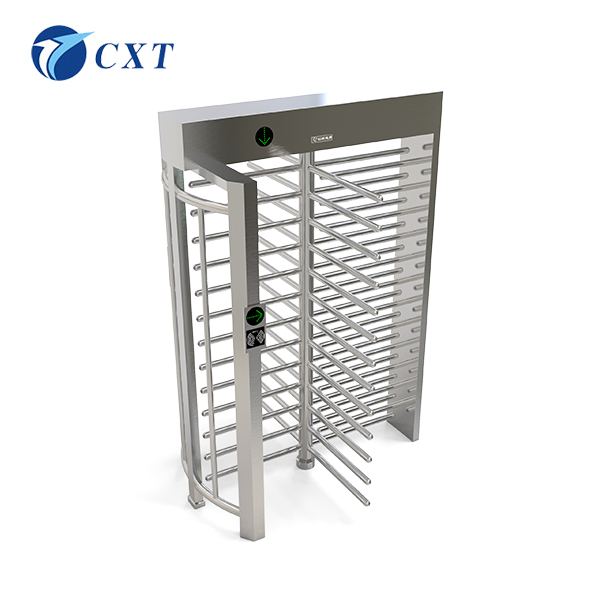

Fully automatic full-height rotating gate CXT-Z1701A-90

Rotary Gate CXT-Z1701A-90

Model: CXT-Z1701A-90

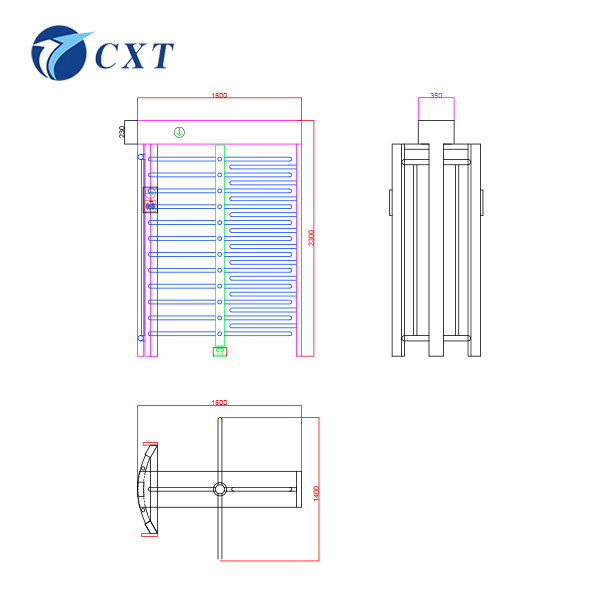

Specifications: 1500*1300*2300mm

Mount Length (Passage Width): 570mm

Manufacturing Process: Bending, cutting, welding, polishing, grinding, etc.

Material: National Standard 304 Stainless Steel (201 Stainless Steel, Painted Iron Available upon Customization)

The CXT-BT1701 full-height rotary gate automatically issues an alarm when unauthorized passage or over-the-gate attempt occurs. Upon impact, the gate arm automatically rotates to the appropriate angle and locks, providing a user-friendly safety measure. It automatically resets after the external force disappears.

CXT-BT1701 Full-Height Rotary Gate Expandable Functions:

1. Remote control and management via a management computer (requires command interface).

2. Counting function for on-site personnel statistics.

3. Personalized voice prompts for a more user-friendly experience.

Full-Height Cross Rotary Gate Features:

1) Self-diagnostic and alarm functions for easy maintenance and use.

2) Automatic opening upon power failure, self-checking upon power restoration and automatically returning to the locked state.

3) Multiple operating modes available: bidirectional card reading, one-way card reading with one direction restricted, or one-way card reading with free passage in the other direction. The gate’s operating mode can be set via the mainboard menu.

4) After a pedestrian passes through with a valid card, the infrared sensor detects the pedestrian’s passage and automatically closes the gate, or closes after a delay of 1-60 seconds, which can be set via the mainboard menu.

5) It has an automatic reset function. If a pedestrian does not pass through within the specified time after a valid card is read, the system will automatically cancel the pedestrian’s passage permission. The restricted passage time can be set by the administrator.

6) It has a 485 remote control function for opening and closing the gate to meet special user needs and fire safety requirements.

7) Anti-impact function: the swing arm automatically locks when no opening signal is received.

8) Mechanical anti-pinch function: if the swing arm encounters resistance during reset, it automatically rebounds or the motor automatically stops working within a specified time with minimal force, while simultaneously issuing an alarm signal.

9) It has a unified, standard external electrical interface, which can be connected to various reading and writing devices for easy system integration, and can be remotely controlled and managed via a management computer. 10) Automatically counts the number of people passing through in each direction and presents this information to the administrator via intuitive LEDs (optional), providing clear visibility of the number of people passing in a particular direction.

11) Provides clear direction indication, using LEDs to indicate whether passage is permitted or prohibited.

12) Offers card reading with and without memory functions, which users can configure via the mainboard keyboard.

13) Software settings allow for limiting the total number of people inside the facility to meet specific needs in special situations.

14) The entire system operates smoothly and with low noise.
