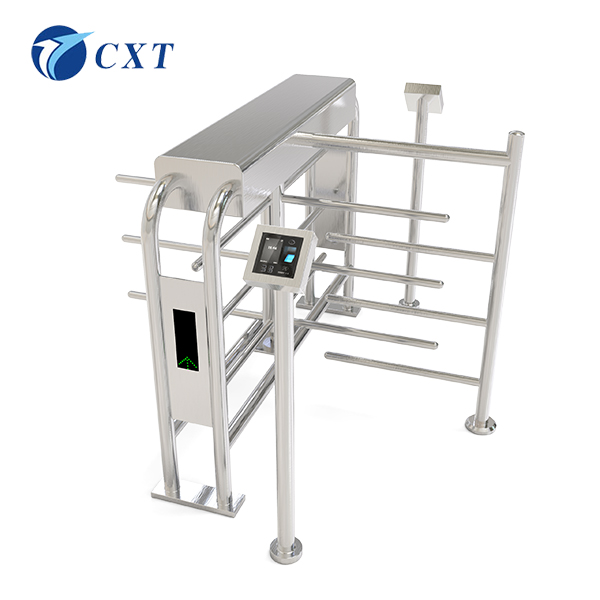

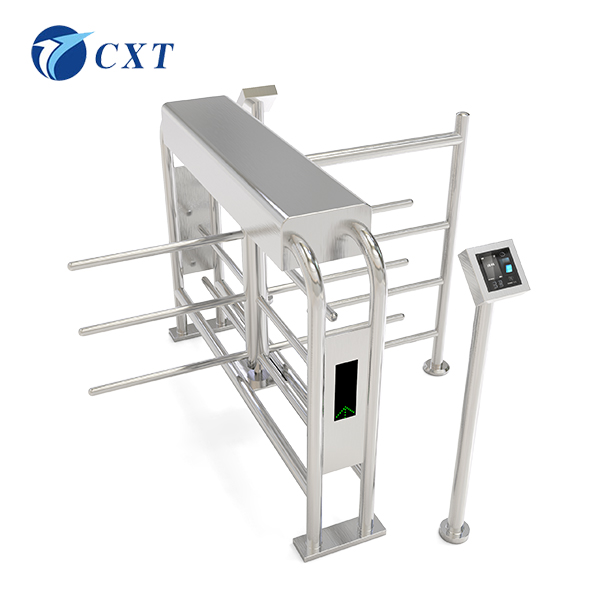

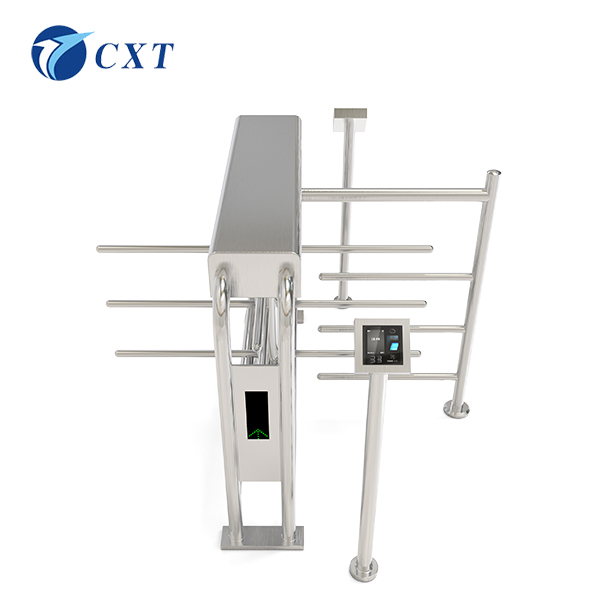

Fully automatic half-height cross rotary gate CXT-Z85

Rotary Gate CXT-ZT85-A

Model: CXT-ZT85-A

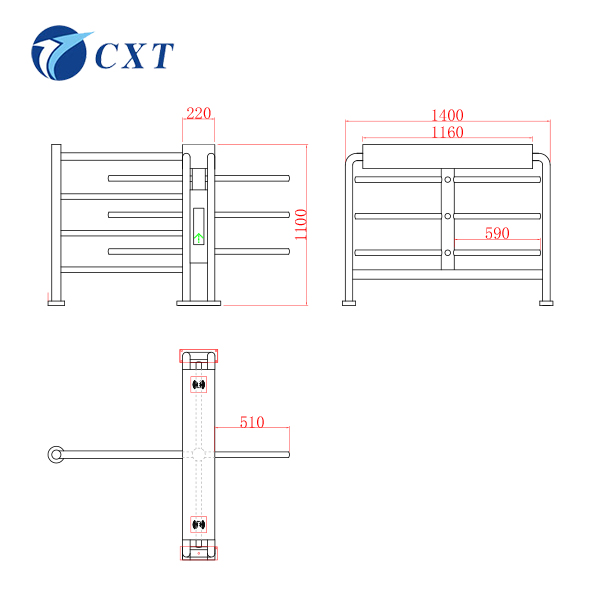

Specifications: 1480*280*1100mm

Mount Length (Passage Width): 570mm

Manufacturing Process: Bending, cutting, welding, polishing, grinding, etc.

Material: National Standard 304 Stainless Steel (201 Stainless Steel, Painted Iron Available upon Customization)

Half-height Revolving Gate – Half-height Guardrail Revolving Gate
Features of the Half-height Revolving Gate:

1) Self-diagnostic and alarm functions for easy maintenance and use.

2) Automatic opening upon power failure, self-checking upon power restoration and automatically returning to the locked state.

3) Multiple operating modes available: bidirectional card reading, one-way card reading with one direction restricted, or one-way card reading with free passage in the other direction. The gate’s operating mode can be set via the mainboard menu.

4) Automatic gate closing upon infrared detection of a valid card reader, or a delayed closing after passage (1-60 seconds, configurable via the mainboard menu).

5) Automatic reset function. If a valid card reader fails to pass within the specified time, the system automatically cancels the reader’s access permission. The restricted passage time can be set by administrators.

6) Remote opening and closing via 485 signal to meet specific user needs and fire safety requirements. 7) Anti-impact function: The swing arm automatically locks when no gate opening signal is received.

8) Mechanical anti-pinch function: If the swing arm encounters resistance during reset, it automatically rebounds or the motor automatically stops working within a specified time with minimal force, while simultaneously issuing an alarm signal.

9) It has a unified, standard external electrical interface, allowing connection to various reading and writing devices for easy system integration. Remote control and management via a management computer are also possible.

10) It automatically counts the number of people passing through in each direction and presents this information to the administrator via intuitive LEDs (optional), providing clear information on the number of people passing through each direction.

11) It has a clear direction indication function, using intuitive LEDs to indicate whether passage is permitted or prohibited.

12) It has card reader functionality with and without memory, which users can set via the motherboard keyboard.

13) Through software settings, the total number of people inside the premises can be limited to meet the special needs of certain occasions.

14) The entire system operates smoothly and with low noise.
