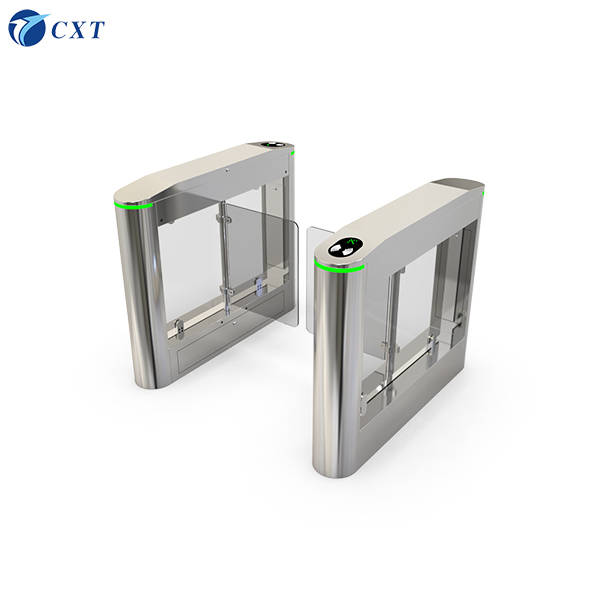

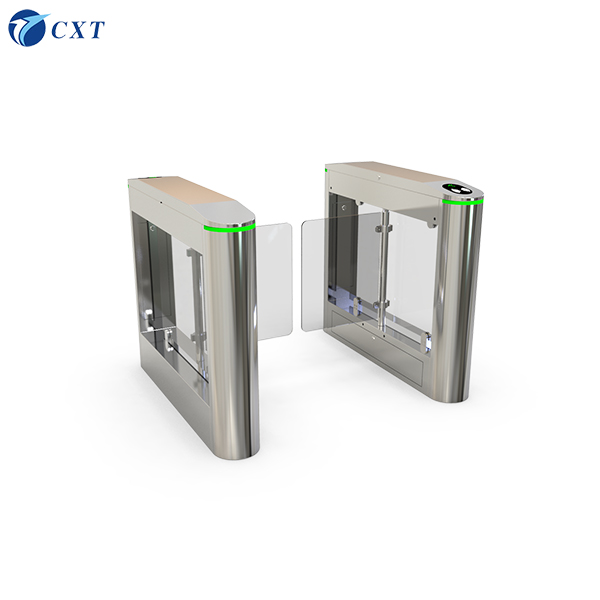

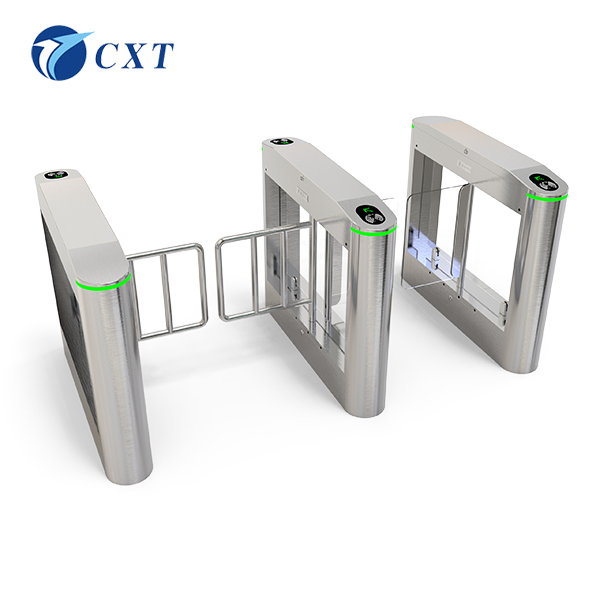

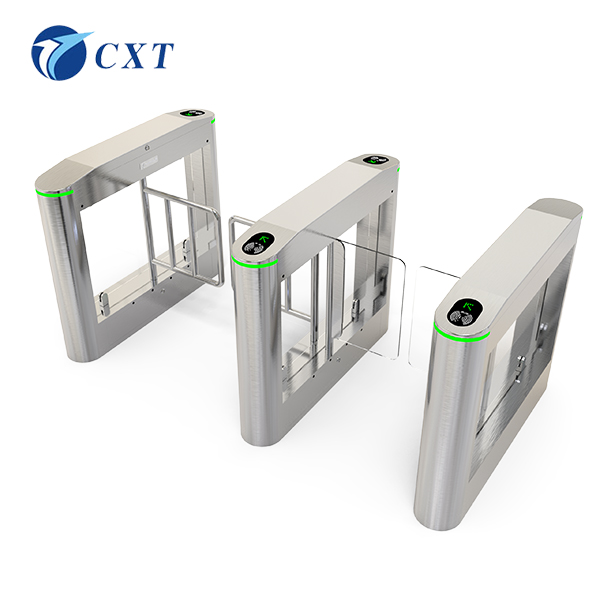

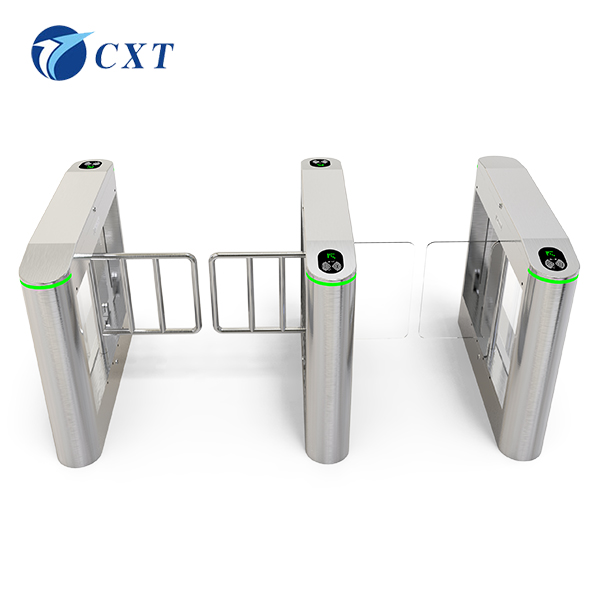

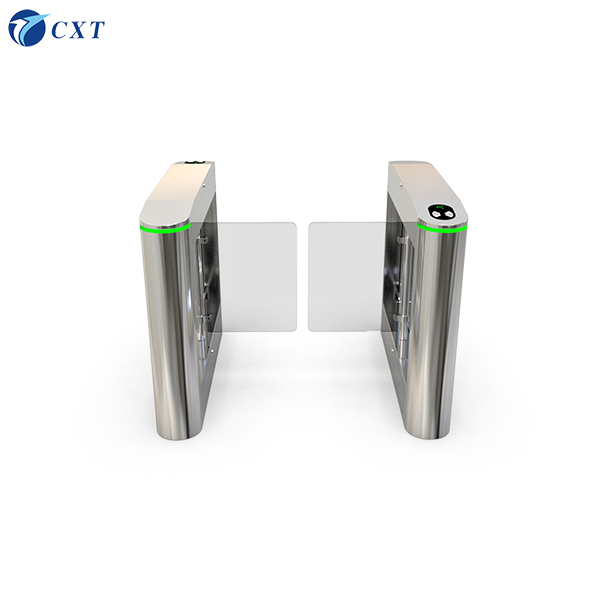

Elite brushless anti-collision swing gate CXT-BW135
Acrylic Swing Barrier Gate Indoor Automatic With Colored Lights 135
Brushless motor anti-collision acrylic swing arm lamp with colored lights Swing Gate CXT-BW135
| Model | CXT-BW135 |

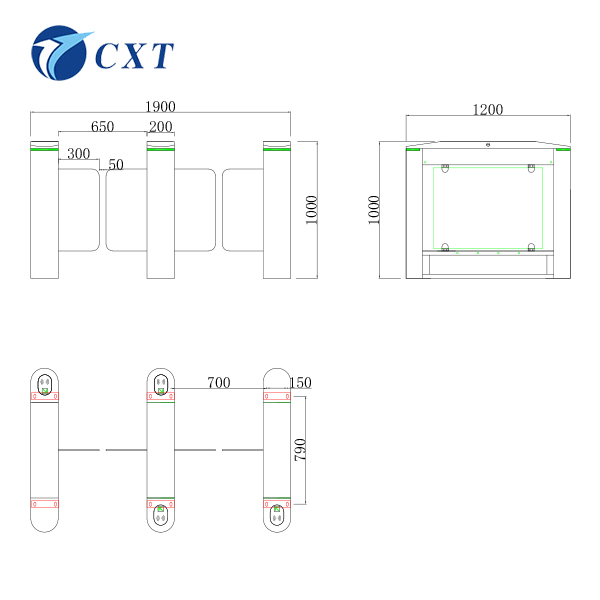

| Specifications | 1200x200x1000mm |
| Pole length | 600mm (standard) -900mm/stainless steel tube/acrylic plate |
| Process | laser, bending, cutting, welding, polishing, grinding, etc. |
| Material | 304 stainless steel |
CXT-BW135 Swing Gate Features
- Self-check for faults, alarm for illegal passage
- Free setting of single and two-way control for passage
- High-brightness light for passage prompt, more intuitive for passage
- Automatic reset, automatic reset after each swing of 90 degrees and detection of people and objects passing
- Anti-tailgating, anti-reverse, alarm for illegal entry
- Unattended: the swing arm is automatically open when power is off, and automatically reset when power is on
- Fire input: It can be connected to the fire alarm signal to achieve uninterrupted power-off and pole opening
- Industrial-grade ARM control system, with additional multi-functional digital setting, encryption and reset functions
- Modular design, easy maintenance
- Anti-buffering, self-protection is safer
- Brushless intelligent positioning, smoother operation, faster passage speed
- Rigorous process details, higher appearance
Technical Parameters of CXT-BW135 Swing Gate
- Shell material: SUS304 high-quality stainless steel
- Motor: brushless motor
- Shell processing technology: laser, bending, cutting, welding, polishing, grinding, etc.
- Weight: single about 50KG, double about 70KG
- Channel net width: 650mm (pedestrian), 900mm (car)
- Swing arm material: stainless steel tube or acrylic plate
- Open/close speed: 0.5-2S adjustable
- Motor: 24V/30W brushless
- Adaptable temperature: -20℃ ~ 80℃ (add temperature control system below -20℃)
- Adaptable humidity: 5%-90%
- Delay reset time: adjustable
- Passing speed: ≥ 35 people/minute
- Working environment: indoors and outdoors
Compatible Identification Methods & Systems
Face recognition, IC/ID card, QR code/barcode, Fingerprint recognition, ID card recognition, Ticketing system, Campus system, Community system, Gym system, Attendance system, Construction site system, LED screen
Swing Gate Comparison Table
| Serial number | Name | General swing gate | Anti-collision swing gate | Brushless swing gate |
|---|---|---|---|---|
| 1 | Drive | Motor | Brushed | Brushless |
| 2 | Positioning principle | Optical coupling fixed point | 1/500 decoding | Brushless intelligent positioning |
| 3 | Positioning method | Gear positioning | Clutch positioning | Intelligent reverse thrust no lock |
| 4 | Buffer | No | Primary buffer | Continuous buffer |
| 5 | Anti-reverse | No | Yes | Yes |
| 6 | Running speed | Uniform speed | Deceleration | Acceleration and deceleration |
| 7 | Mechanical wear | Large | No | Small |
| 8 | Illegal mechanical alarm | (no infrared) No | Yes | Yes |
| 9 | Service life | 1-3 years | 3-5 years | 5-10 years |
| 10 | Transmission life | 3 million times | 5 million times | 10 million times |
| 11 | Parameter setting | Dial code | Dial code | Digital button |
| 12 | Memory | No | Yes | Yes |
| 13 | Fire input | Yes | Yes | Yes |
| 14 | Feedback signal output | Yes | Yes | Yes |
| 15 | Power off | Normally open | Yes | Yes |
