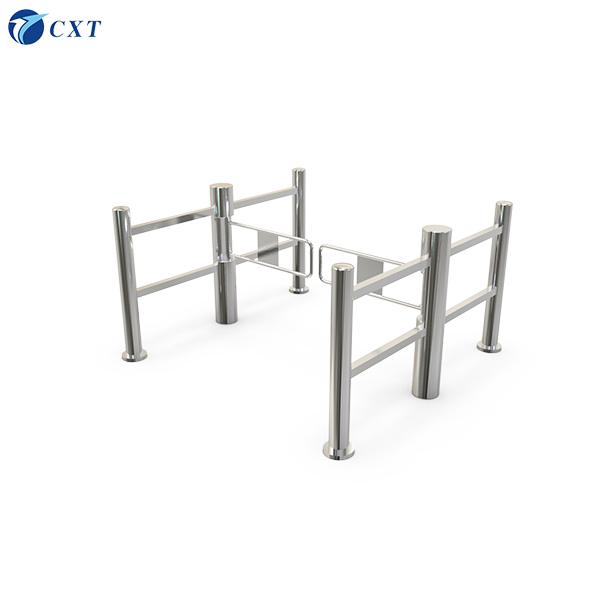

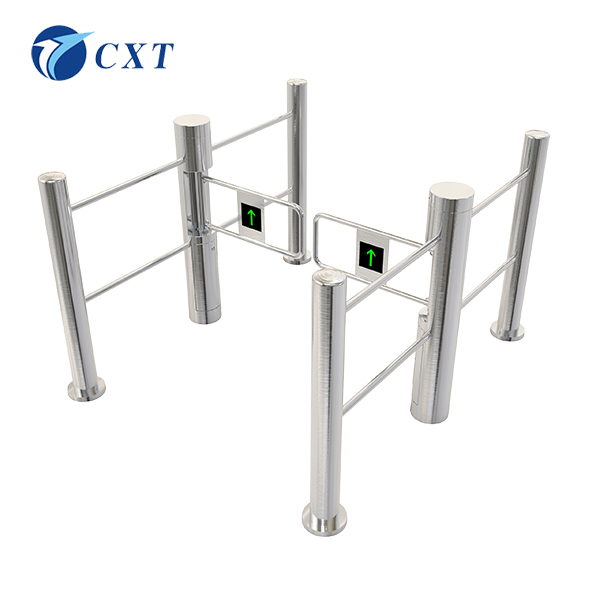

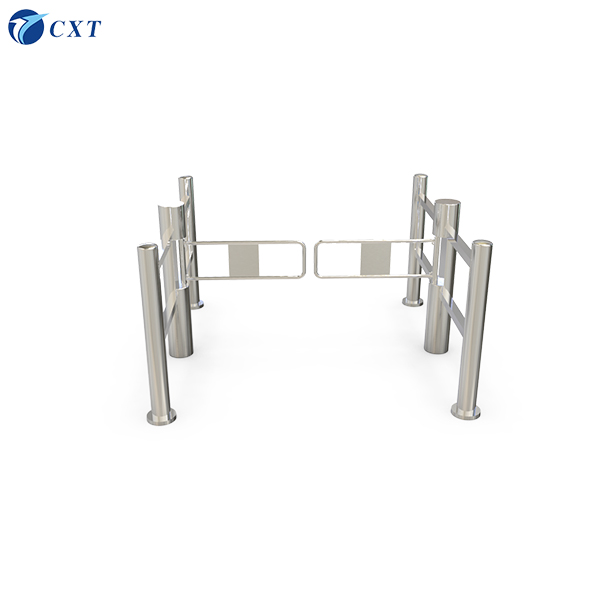

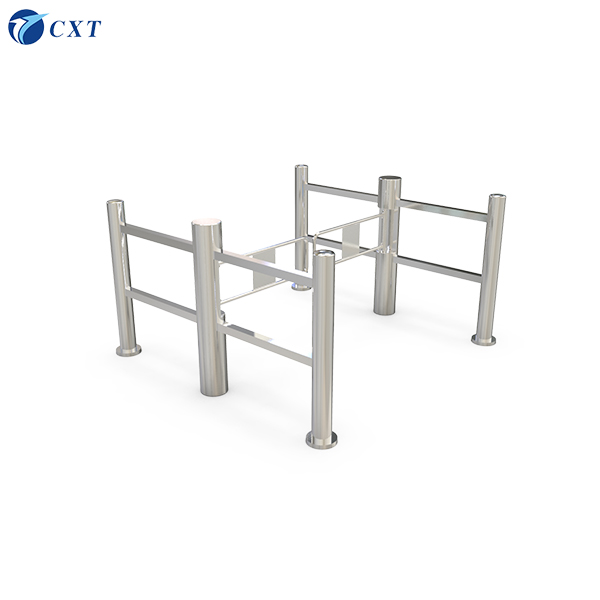

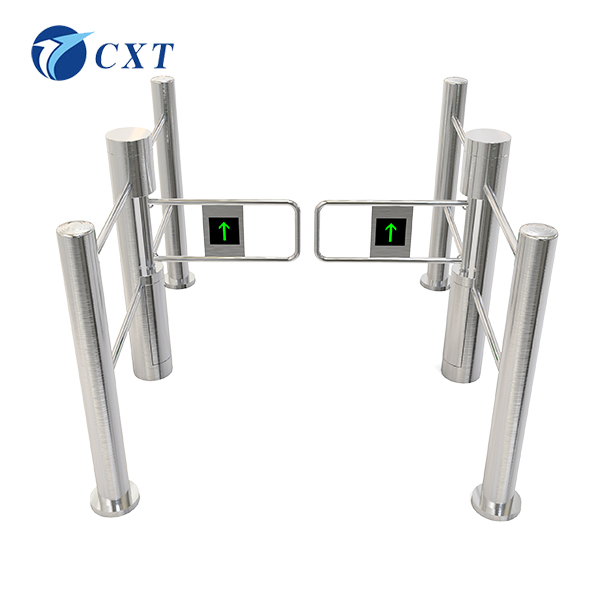

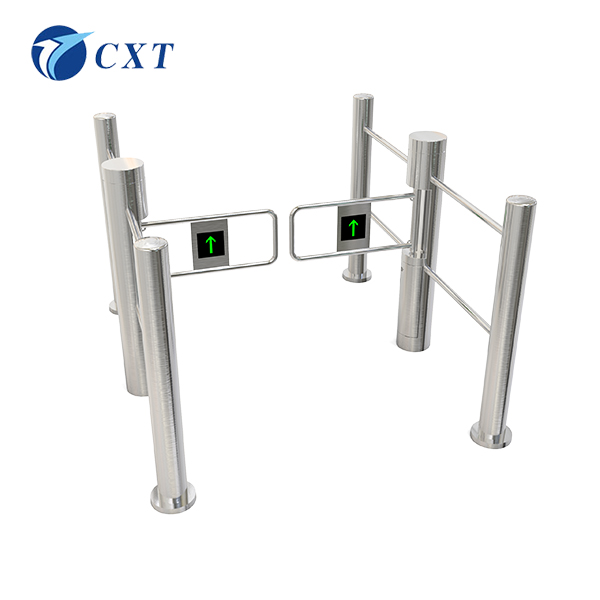

Supermarket professional column-type brushless swing gate CXT-BW130SH
Anti Pinch Swing Barrier Gate 304 Stainless Steel Convenient 130SH
Product Overview
Brushless motor anti-collision smart supermarket universal Swing Gate CXT-B130SH
Specifications
| Model | CXT-B130SH |

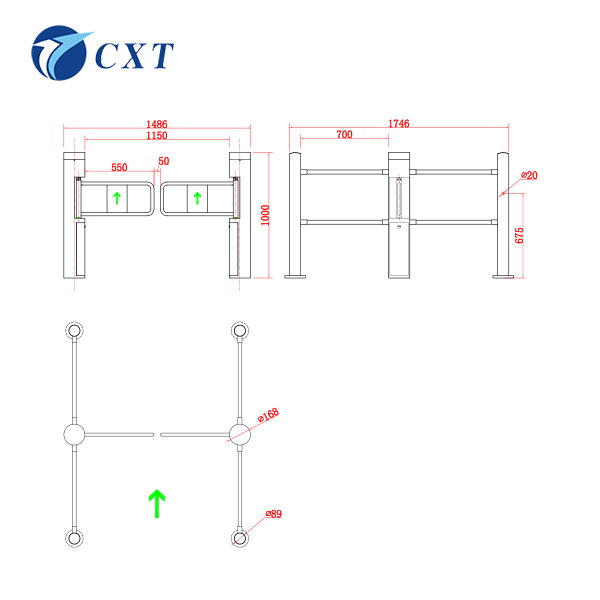

| Specifications | ￠168×1050/sub-column-201-￠89MM |
| Pole length | 545mm |
| Process | Produced by bending, cutting, welding, polishing, grinding and other processes |
| Material | National standard 304 stainless steel (201 stainless steel, iron paint can be customized) |
Cylindrical Swing Gate
Innovation Tong adheres to the business philosophy of “integrity, innovation, and brand”. With more than ten years of exploration and accumulation of intelligent channel gate systems, we break the traditional pattern with new design concepts and successively launch the channel boutique Pentium series including brushless swing gates, brushless three-roller gates, brushless wing gates, and high-end sliding gates.
Our cases are implemented nationwide across various sectors including banks, foreign companies, large state-owned enterprises, administrative units, petrochemical oil fields, passenger stations, mobile communications, prisons, smart communities, shopping malls and supermarkets, buildings/office buildings, and leisure/sports/recuperation/tourist attractions.
Product Features
- Fault self-check and alarm prompt functions for easy maintenance
- Programmable operation settings via built-in keypad
- Anti-pinch and anti-collision protection with automatic motor stop
- Swing arm synchronization for smooth operation
- Automatic reset function after specified time
- Configurable normally open or normally closed modes
- Induction or delayed automatic reset (default 10 seconds)
- Automatic swing open when power off and close when power on for fire safety
- Compatible with multiple card reading devices
Applications
Compatible with IC card, ID card, barcode card, fingerprint and other identification devices. Widely used in various occasions requiring authorized personnel access control including government offices, enterprises, clubs, shopping malls, supermarkets, amusement parks, smart community entrances, subways, stations, and docks.
Related Products
Technical Comparison
| Serial Number | Name | General Swing Gate | Anti-collision Swing Gate | Brushless Swing Gate |
|---|---|---|---|---|
| 1 | Drive | Motor | Brushed | Brushless |
| 2 | Positioning Principle | Optical coupling fixed point | 1/500 decoding | Brushless intelligent positioning |
| 3 | Positioning Method | Gear positioning | Clutch positioning | Intelligent reverse thrust no lock |
| 4 | Buffer | No | Primary buffer | Continuous buffer |
| 5 | Anti-reverse | No | Yes | Yes |
| 6 | Running Speed | Uniform speed | Deceleration | Acceleration and deceleration |
| 7 | Mechanical Wear | Large | No | Small |
| 8 | Illegal Mechanical Alarm | No | Yes | Yes |
| 9 | Service Life | 1-3 years | 3-5 years | 5-10 years |
| 10 | Transmission Life | 3 million times | 5 million times | 10 million times |
| 11 | Parameter Setting | Dial code | Dial code | Digital button |
| 12 | Memory | No | Yes | Yes |
| 13 | Fire Input | Yes | Yes | Yes |
| 14 | Feedback Signal Output | Yes | Yes | Yes |
| 15 | Power Off | Normally open | Yes | Yes |
