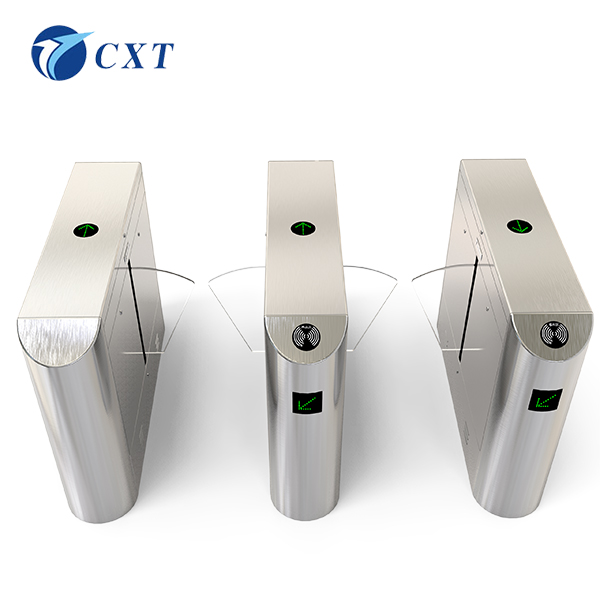

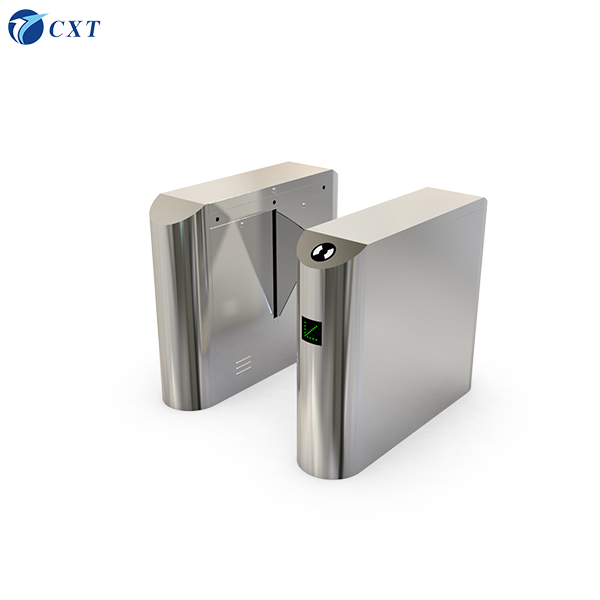

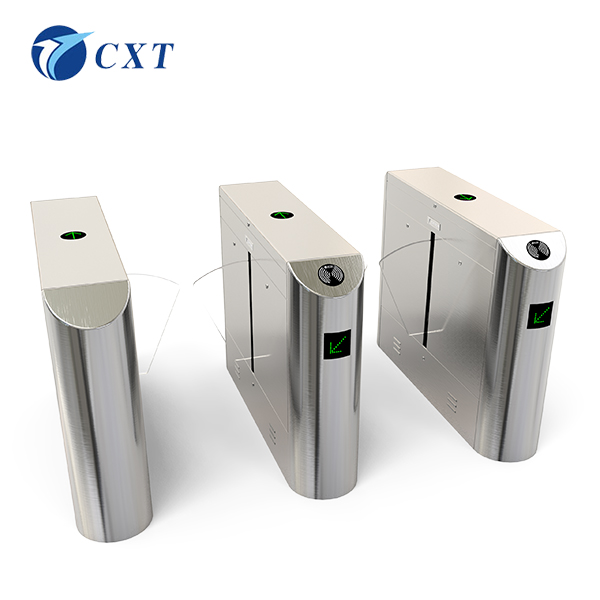

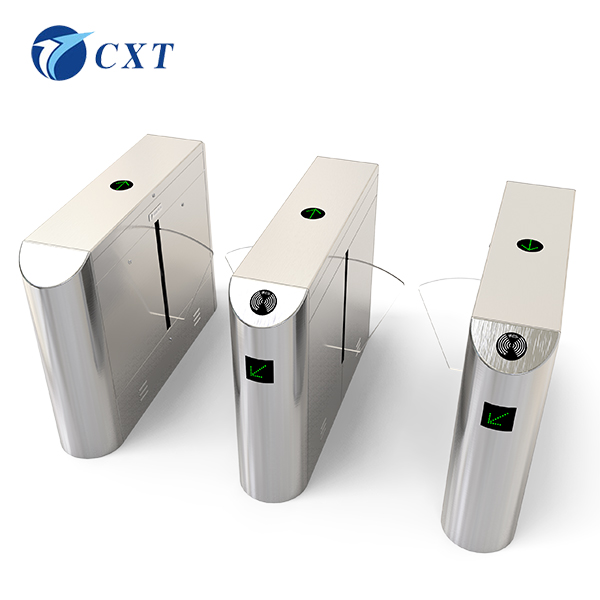

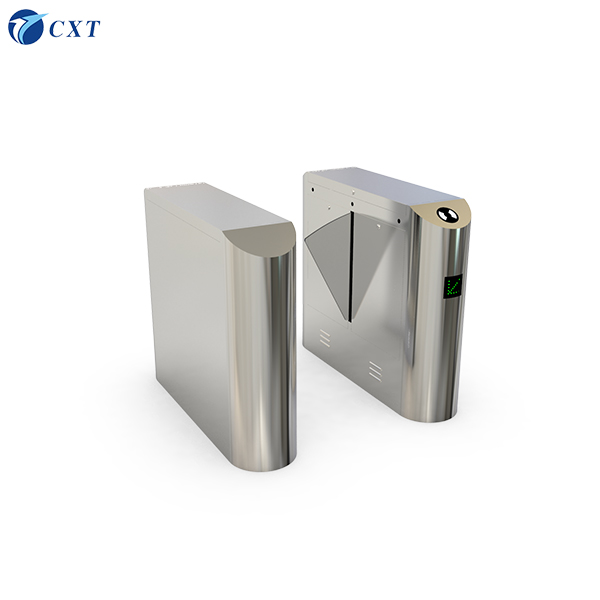

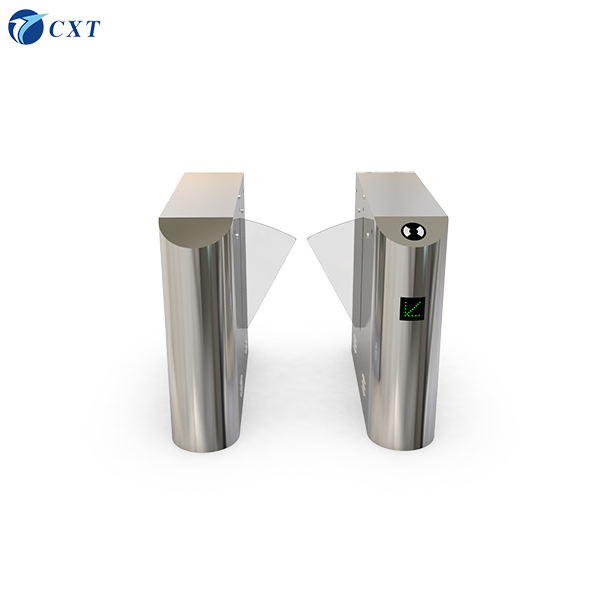

Circular arc slope brushless wing gate CXT-YW120YX

Office Building Clubhouse Brushless Motor Flap Barrier Gate/ Wing Gate CXT-YW120YX

Wing Gate CXT-YW120YX

1. Brief description of the functions of CXT-YW120YX arc inclined wing gate

l It has fault self-checking and alarm prompt functions, which is convenient for users to maintain and use.

l It can be connected to any control signal or button or remote control output by any control device to realize single and two-way control of passage.

l Automatic reset function: After each extension of 90 degrees and detecting the passage of people and objects, it will automatically reset, or if there is no passage within the specified time (delay is adjustable in multiple gears), the system will automatically cancel the right of passage and return to the initial position.

l Light indication: High-brightness traffic light status indication to guide passage.

l Anti-tailing function:

1. When the person or object in front passes, during the process of swinging wing reset, if someone follows or rushes the gate, an alarm will be sounded.
2. (When equipped with infrared detection) When the person or object in front has not passed completely, if someone follows and breaks in, the infrared alarm will be activated.
3. When someone swipes the card in the forward direction and someone breaks in in the reverse direction, the swing wing will close. When the person or object exits, the swing wing will open again to allow forward passage.
   l Fire input: It can be connected to the fire alarm signal to achieve non-stop power-on.
   l Alarm prompt function: When illegal passage or gate rushing occurs, an alarm prompt will be automatically issued.
   l Adjustable speed: The speed of opening and closing the swing wing is adjustable in 8 gears, and the user can set it according to actual needs.
   l Automatic protection function: When external force prevents the normal movement of the swing wing, and the external force is continuous, the system will automatically detect 5 times and then automatically protect and enter the dormant state. When the next legal signal is input, the gate will automatically return to normal.
   l Anti-collision buffer function: When illegal passage or forced tailgating occurs, when someone or an object blocks the swing wing, humanized injury prevention is achieved. It also greatly reduces mechanical damage caused by collision.
   l Unattended: The swing wing is automatically open when the power is off, and automatically reset (blocking passage) when the power is on.
   l Fast and silent: electric power, zero mechanical wear. About 45-60 people/minute

Expandable functions:

1. Remote control and management through the management computer (command docking is required).
2. Counting function to realize the number of people present and ensure accurate counting after people pass through.
3. Personalized voice prompt function makes the channel closer to life.
4. Technical parameters of CXT-YW120YX wing gate

◇ Shell material: SUS304 stainless steel

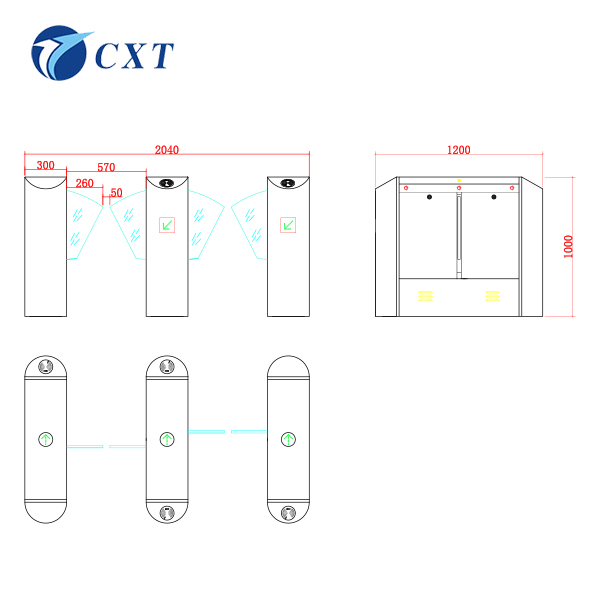

◇ Specification size: length 1200*width 300*height 1000mm.

◇ Swing wing type: 300mm (standard) acrylic with wing light.

◇ Opening and closing speed: 0.5-1S.

◇ Motor: 24V/30W DC.

◇ Positioning accuracy: 120 degrees photoelectric positioning.

◇ Adaptable temperature: -40℃～80℃.

◇ Adaptable humidity: 5%——90%.
◇ Delay reset time: 3S, 5S, 10S, 20S adjustable.
◇ Passing speed: about 45-60 people/minute.
◇ Shell processing technology: laser, bending, cutting, welding, polishing, grinding and other processes are used for production.
◇ Working environment: indoors and outdoors. Wing gate, wing gate manufacturer, wing gate production, Shenzhen wing gate
