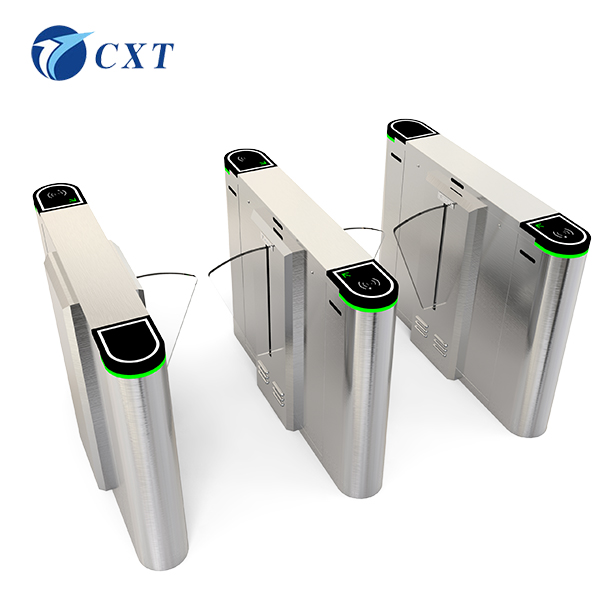

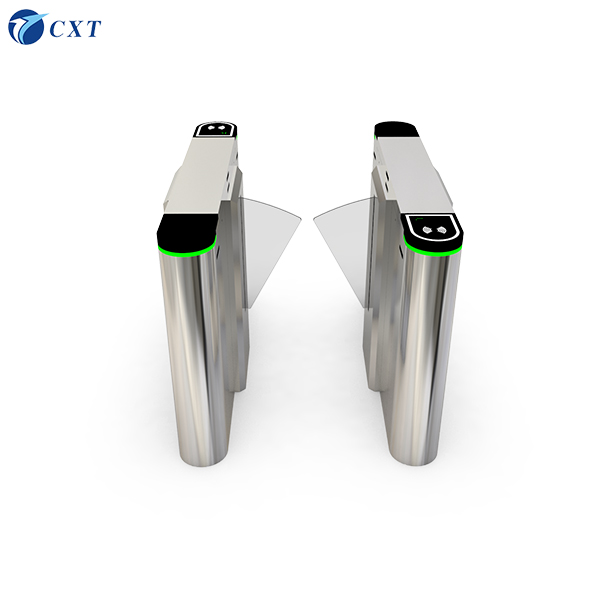

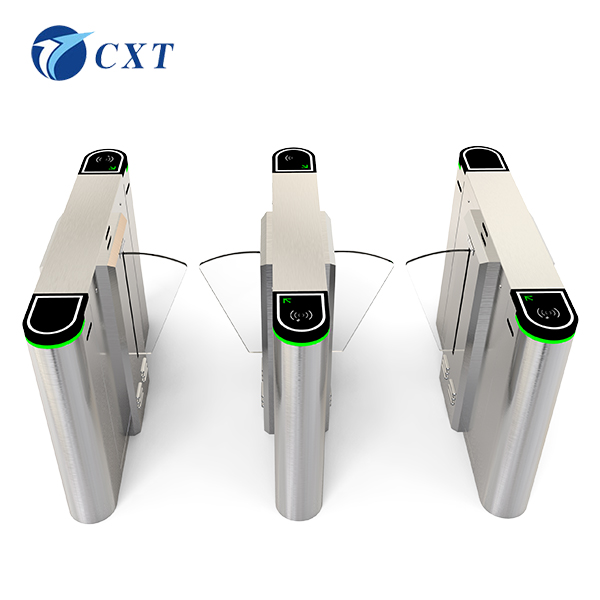

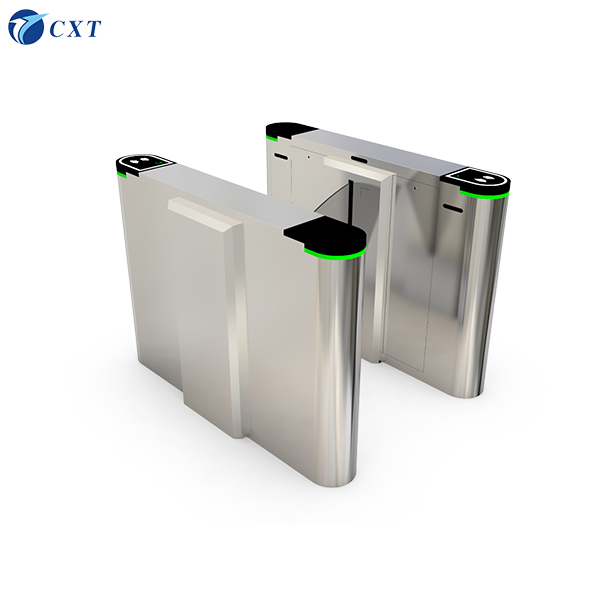

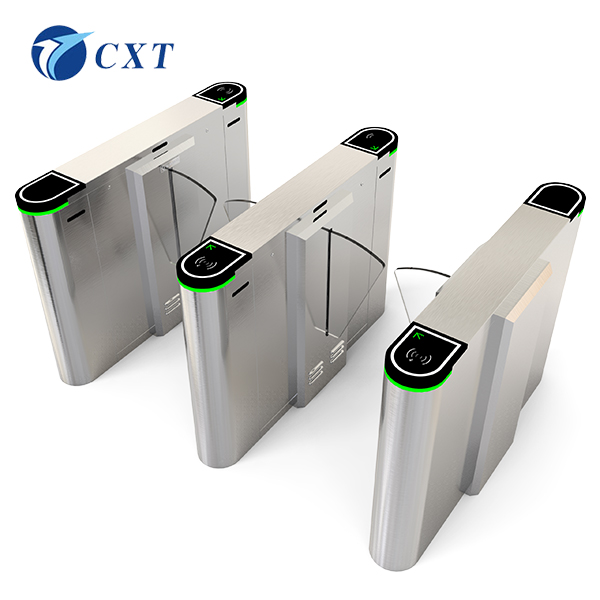

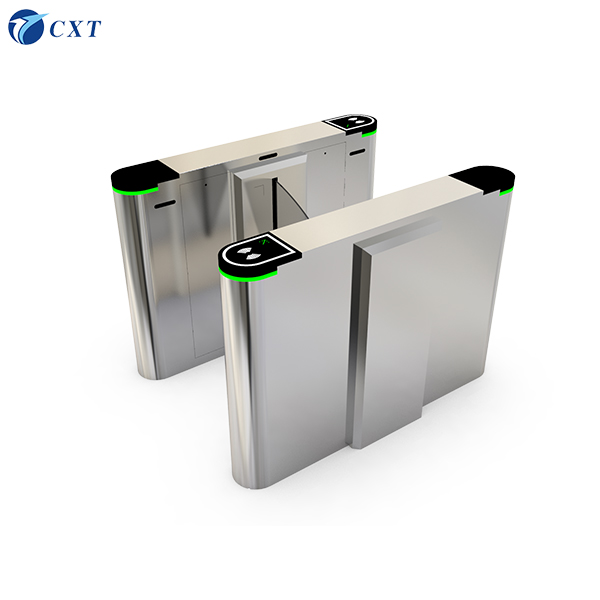

Office Clubhouse Brushless Motor 300 people/minute Flap Barrier Gate/Wing Gate CXT-YW200

Wing Gate CXT-YW200

Product features of large arc elliptical brushless wing gate:

1) It has fault self-detection and logic judgment functions, which is convenient for users to maintain and debug functions;
2) Flexible dial code setting of various performances of the equipment, up to dozens of types;
3) Mechanical and infrared dual anti-pinch function, when encountering obstacles during the resetting process of the barrier arm, it will automatically stop or rebound and send out an alarm signal;
4) Multiple mode alarm function, including illegal intrusion, anti-intrusion, tailgating, and passage timeout alarms;
5) Anti-collision function, when no gate opening signal is received, the barrier arm will automatically lock;
6) Reverse intrusion closing alarm function, when someone enters from the reverse direction after swiping the card forward, the barrier wing will quickly close and send out an alarm;
7) Flexible passage indication function, high-brightness indicator light plus its humanized prompt function, making the channel more distinctive;
8) Normally open and normally closed modes are adjustable, easily controlled by dialing or external manual buttons;
9) Automatic detection and reset function, after opening the gate, if no object is detected within the specified time (adjustable), the system will automatically cancel the passage authority;
10) Automatic normally open when power is off to meet fire protection requirements;
11) It can be connected with a variety of control devices and receive relay switch signals to work;
12) Various traffic modes, can control personnel entry and exit in one direction or two directions, or be controlled in one direction and freely pass in the opposite direction;
13) Strong ability to adapt to the environment, can work normally in various harsh environments, super strong self-protection ability, can adapt to weak current short circuit, strong light exposure, fog, rain, snow, typhoon weather and environmental changes.
2. Expandable functions:
◆Two-way automatic counting function, can “add” in the forward direction and “subtract” in the reverse direction, automatically count the number of people present (customized).
◆Voice prompt function: “Welcome! Bon voyage! Please swipe your card!” etc. (customized);
◆Telescopic arm material and primary color selection

3. Main structure and configuration of the wing gate (based on single channel):
   2 standard stainless steel chassis, 2 plexiglass arms, 2 industrial-grade main control boards, 2 transformers, 2 motors, 2 sets of movement and transmission parts, 3-4 pairs of infrared beams, 4 high-brightness warning lights
   4. Standard technical parameters of the wing gate:

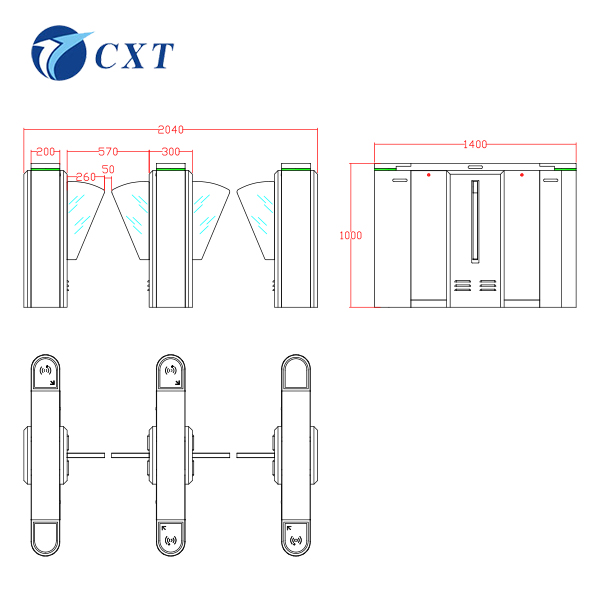

   ◆Chassis size: 1200*320*1000mm
   ◆Processing technology: produced by bending, cutting, welding, polishing, grinding and other processes
   ◆Single machine weight: about 90Kg (single movement), about 120KG (double movement)
   ◆Chassis material: standard 304 stainless steel frame structure
   ◆Working environment: indoor or outdoor (with rainproof rack)
   ◆Access voltage: AC220±10% V, 50HZ
   ◆Drive motor: DC motor (60W/24V)
   ◆Motor speed: 1600 rpm
   ◆Input interface: Relay switch signal
   ◆LED indicator: 2
   ◆Card reader: 2
   ◆Normal service life: 5 million times
   ◆Humidity: 5%–90%
   ◆Passing speed: 30-40 people/minute
   ◆Gate opening and closing time: 1-2 seconds
   ◆Time required to enter the passing state after power-on: 3 seconds
   ◆Automatic reset time after a fault occurs: 10 seconds
   ◆Working temperature: -40℃—— 80℃
