Elite Speed-through Gate CXT-BT117
AI intelligent brushless motor anti-collision Speed gate CXT-BT117
Technological Breakthroughs
The business class speed gate system we developed adopts the revolutionary triple verification technology (face + ticket + biometrics) to achieve 0.2 seconds of swift passage, which is 37% more efficient than traditional gates. NanoShield™ nano-coating technology is self-cleaning and passes the ISO 22196 antimicrobial certification, ensuring hygienic and safe passage after 2,000+ touches per day. Intelligent Prediction System activates the channel 10 minutes in advance and dynamically adjusts the access strategy based on real-time passenger flow data, improving Business Class boarding efficiency by 60%.
Business Value
The system generates significant benefits for airport operators: a 28% increase in lounge utilization and a 22% increase in retail spending, while reducing manpower requirements by 40%. For airlines, NPS customer satisfaction scores increased by 15 percent, and turnaround times for interline flights were reduced by 22 percent. The system’s integrated CloudConnect™ cloud-based platform also generates heat maps of passenger flow routes to help optimize commercial layouts, which is expected to boost non-airline revenues by 19% over three years.
Service Guarantee
We offer a 48-hour rapid deployment program, including 2-hour staff training. The system is EN54 safety certified and equipped with a dual emergency release mechanism with a failure rate of less than 0.5%. All equipment is made of 80% recycled aerospace aluminum, supporting a 5-year full-cycle maintenance service. Singapore Changi Airport has demonstrated that this solution delivers a return on investment within 11 months, making it an ideal choice for today’s high-end hub airports.
Technical parameters
◇ Shell material: SUS304 high-quality stainless steel, thickness varies from 1.5-3.0mm (according to the part).
◇ Shell processing technology: laser, bending, grooving, cutting, welding, polishing, grinding and other processes are used for production.

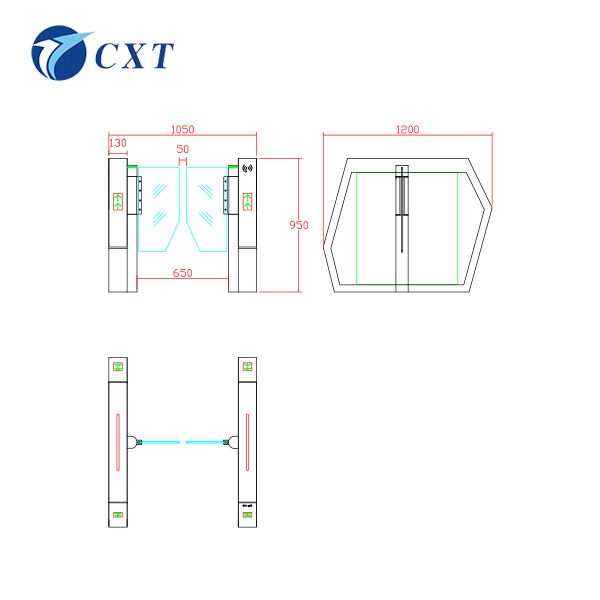

◇ Specification size: L1600*W160*950MM.
◇ Weight: single movement about 50KG; double movement about 70KG.
◇ Channel net width: 600mm-700mm.
◇ Opening and closing speed: 0.4-2S adjustable.
◇ Motor: 24V /30W brushless servo.
◇ Adaptable temperature: -20℃ ~ 80℃ (consider adding temperature control system below -15℃).
◇ Adaptable humidity: 5% – 90%.
◇ Delay reset time: multi-level adjustable.
◇ Passing speed: about 25-35 people/minute.
◇ Working environment: indoor.
