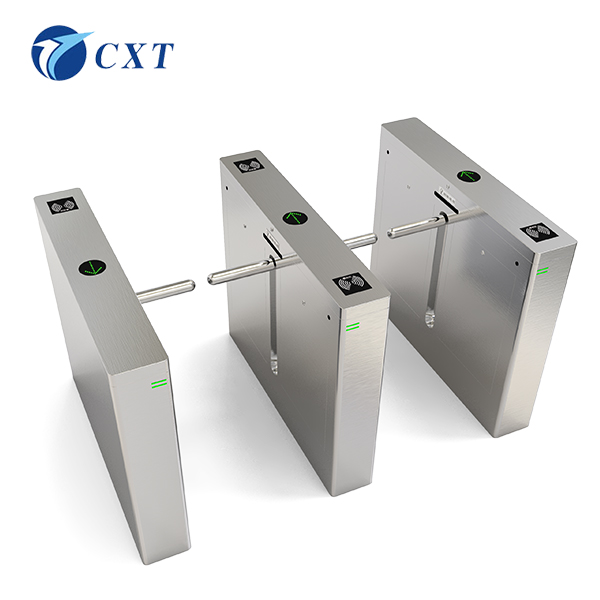

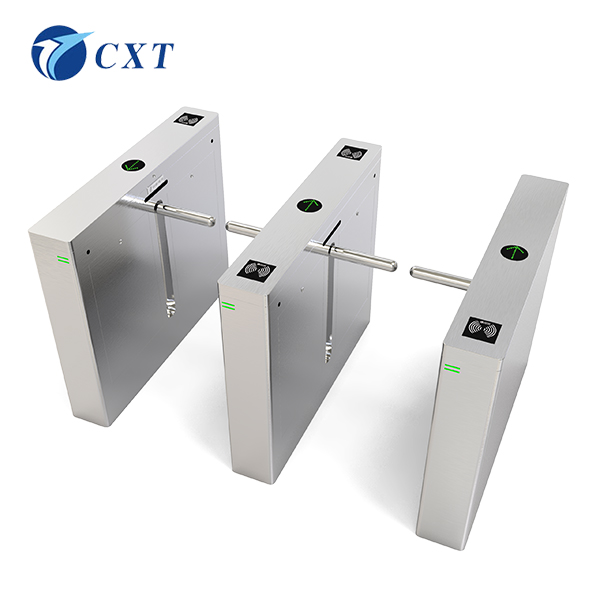

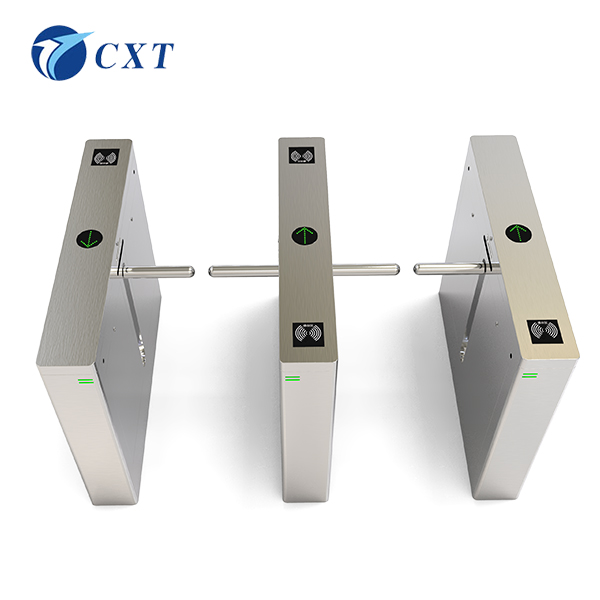

 Drop Arm Turnstile CXT-YZ1200A

Automatic ticket gate station office building community club Drop Arm Turnstile CXT-YZ1200A

Chuangxintong’s latest single-shaped gate CXT-YZ1200A

1. Product Overview:
   Chuangxintong single-shaped gate is a high-tech patented channel product with “single-shaped pole rising and falling two-block control passage”. The product adopts a new ARM control system and advanced brushless motor industrial control circuit and unique DFC technology, plus the brushless motor’s unique transmission technology and accurate limit technology, which makes the product revolutionary in terms of performance, life, speed, noise, stability, etc.
2. Functional description
   l It has fault self-check and logic judgment functions, which is convenient for user maintenance and function debugging;
   l It can flexibly set various performances, up to dozens of types, and is easy to expand;
   l The triple anti-pinch function of mechanical, infrared, and resistance rebound makes the operation safer;
   l Multiple mode alarm functions, including illegal intrusion, anti-intrusion, tailgating, and passage timeout alarms;
   l Anti-collision function, when no gate opening signal is received, the barrier arm is automatically locked;
   l Reverse intrusion closing alarm function, when someone enters from the reverse direction after swiping the card in the forward direction, the barrier wing will close quickly and issue an alarm at the same time;
   l Flexible passage indication function, high-brightness indicator light plus its humanized prompt function make the channel more distinctive;
   l Normally open and normally closed modes are adjustable, and can be easily controlled by settings or external manual buttons;
   l Automatic detection and reset function, after opening the gate, if no object is detected within the specified time (adjustable) to pass, the system will automatically cancel the right of passage;
   l Automatic normally open when power is off to meet fire protection requirements;
   l It can be connected with a variety of control devices and receive relay switch signals to work;
   l Various traffic modes, can control personnel entry and exit in one direction or two directions, or be controlled in one direction and freely pass in the opposite direction;
   l Strong ability to adapt to the environment, can work normally in various harsh environments, super strong self-protection ability, can adapt to weak current short circuit, strong light exposure, fog, rain, snow, typhoon weather and environmental changes.
   3. Technical parameters

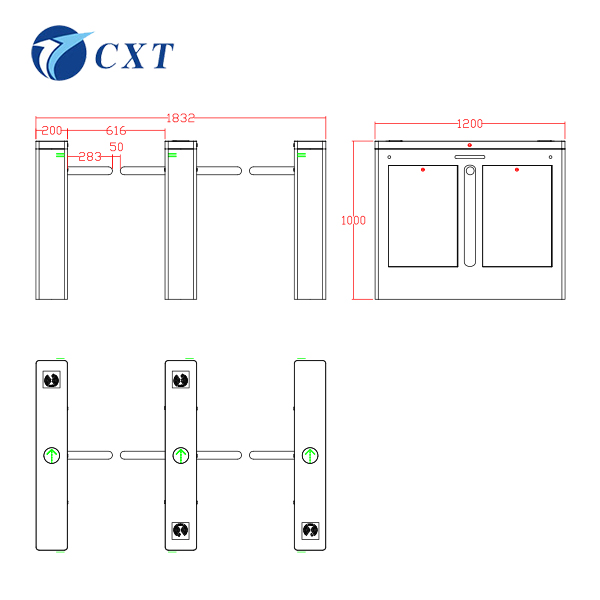

   u Chassis size: 1200 length * 200 width * 1000 height (MM) / according to various styles
   u Processing technology: bending, cutting, welding, polishing, grinding and other processes
   u Channel net width: 650-900mm
   u Machine weight: about 40Kg (single movement), about 60KG (double movement)
   u Chassis material: standard 304 stainless steel frame structure
   u Working environment: indoor or outdoor (with rainproof rack)
   u Access voltage: AC220±10V, 50HZ
   u Drive motor: DC brushless motor (30W/24V)
   u Input interface: relay switch signal
   Innovative Tong single-word gate has more unique advantages:
   Adopting brushless motor technology, longer life;
   l Adopting ARM control technology and DFC technology, it has more powerful functions and better scalability;
   l Faster speed, the switching speed can reach ≤0.5S;
   l The sound is lower, reaching ≤50 decibels;
   l The operation is smoother, that is, no shaking, no vibration, and no echo.
