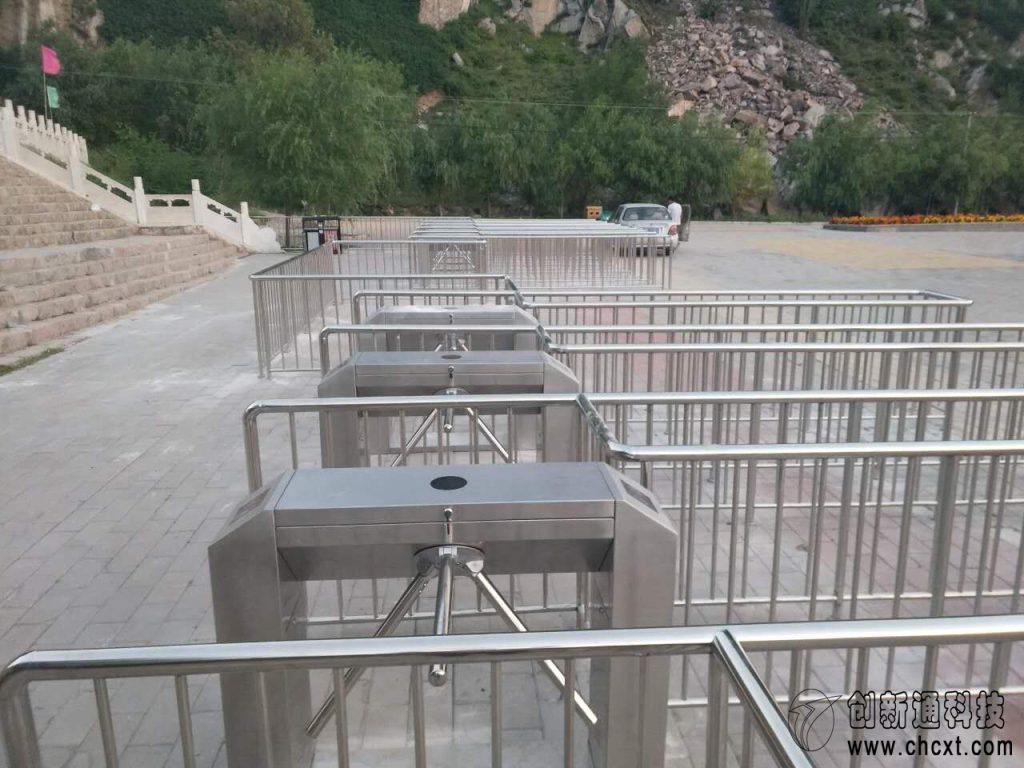

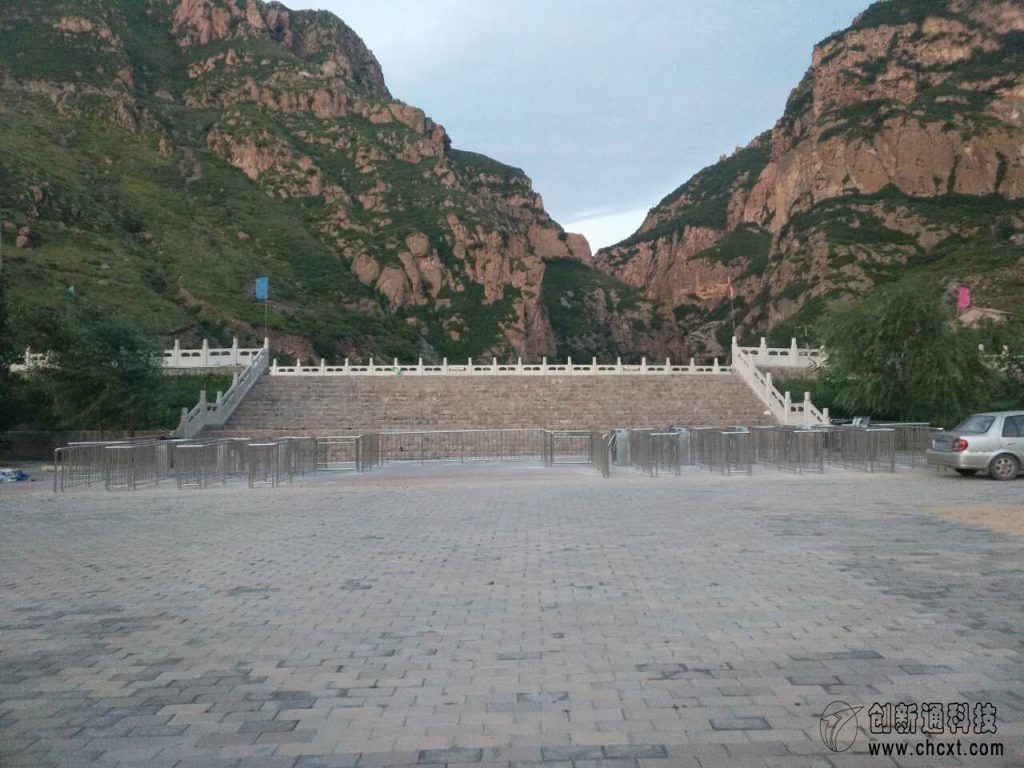

Case Study of Three-Roller Turnstiles in Zhangjiakou Scenic Area, Hebei Province (CXT)
Unique Advantages of the New CXT-SW120 Fully Automatic Brushless Tripod Turnstile:
Modular design for a simpler structure and easier maintenance;
Upgraded chassis for a more compact design;
Brushless motor for longer lifespan;
ARM control technology for more powerful functions and better expandability;
Improved buffering effect to greatly prevent injury from impacts;
Immediate counter-push force to deter unauthorized operators; and other unparalleled advantages;
Higher cost-performance ratio, “high-end performance at a low price.”
Brief Function Description of the New CXT-SW120 Fully Automatic Brushless Tripod Turnstile:
Self-diagnosis: Features self-diagnosis and digital display prompts for easy maintenance and use.
Automatic arm lowering and raising: Automatically lowers when power is off and automatically raises when power is on.
Dynamic prompt: When a valid passage signal is received, the gate arm automatically rotates approximately 5 degrees; a light touch gently rotates it to the next reset point and stops.
Automatic Correction: When the gate arm deviates from its horizontal position due to external force, the system automatically corrects and returns it to a horizontal position.
Card Swipe Window: Unique card swipe window design adds card swipe access indication.
Light Indicator: Personalized, high-brightness, dynamic access indicators guide passage.
Fast and Wear-Free: Electric power assist, zero mechanical wear.
Smooth and Noise-Free: Smooth and stable operation with low noise.
Anti-Collision Buffer Function: In case of illegal passage or gate rushing, the gate arm automatically activates braking force to block and sounds an alarm, achieving a humanized protection against injury. It automatically resets after the external force disappears.
Anti-Tailgating Function: The gate rotates 120 degrees for each person passing through. If someone tailgates, the gate automatically activates reverse thrust to block and sounds an alarm.
Utilizing optical working principles, there is no delay requirement for input control signals, absolutely preventing the phenomenon of multiple people passing through with one card.
Anti-Reverse Function: If reverse rotation occurs during passage, the gate arm automatically activates braking force to block and sounds an alarm. It automatically resumes passage after the reverse force disappears.
Automatic Reset Function: Automatically resets after every 120-degree rotation, or automatically cancels passage permission if no passage is granted within a specified time (adjustable delay).
Alarm Function: Automatically issues an alarm upon illegal passage or gate breach.
Memory Function: Precisely memorizes signals; automatically resets after detecting the last person passing through after multiple consecutive valid signals, significantly improving passage speed. (This function is selectable via DIP switch.)
Features a unified, standard external electrical interface, compatible with various reading and writing devices, and operates by receiving relay switch signals, facilitating system integration.
Offers multiple operating modes, allowing connection to control signals from any external control device, buttons, or remote controls for one-way or two-way passage control. It can restrict passage in both directions or one direction; the operating mode can be set via control panel buttons. Alternatively, it can be set to allow free one-way or two-way passage.
External buttons or remote controls enable uninterrupted remote control of the gate lowering and raising functions to meet specific user needs and fire safety requirements (expansion required).
Fire alarm input: It can be connected to the fire alarm signal to achieve the continuous power-off operation of the pole.
